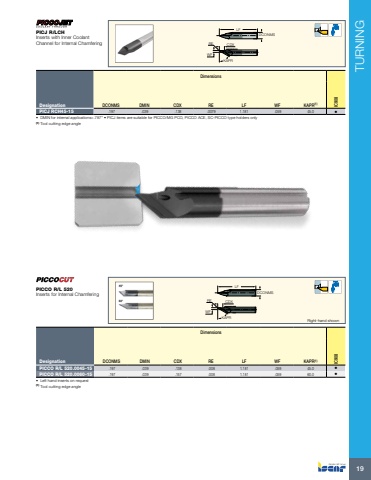

TURNING19LFDCONMSCDXWFREKAPRDimensionsDesignation DCONMS DMIN CDX RE LF WF KAPR(1) IC908PICJ RCH45-15 .197 .039 .138 .0079 1.181 .059 45.0 %u2022 %u2022 DMIN for internal applications=.787\O type holders only(1) Tool cutting edge angle PICJ R/LCHInserts with Inner Coolant Channel for Internal ChamferingLFDCONMSCDXWFREKAPR Right-hand shownDimensionsDesignation DCONMS DMIN CDX RE LF WF KAPR(1) IC908PICCO R/L 520.0045-15 .197 .039 .138 .008 1.181 .059 45.0 %u2022 PICCO R/L 520.0060-15 .197 .039 .157 .008 1.181 .059 60.0 %u2022 %u2022 Left hand inserts on request(1) Tool cutting edge angle PICCO R/L 520Inserts for Internal Chamfering
