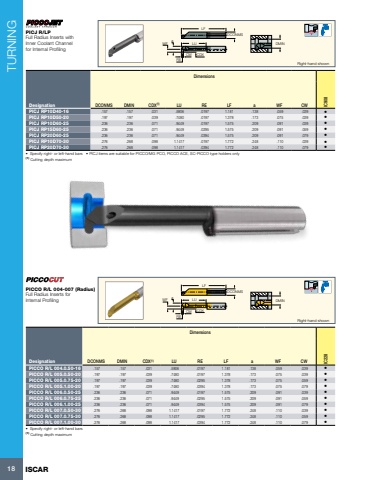

TURNING18 ISCARLFDCONMSWF LU aCWRECDXDMINRight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF CW IC908PICJ RP10D40-16 .157 .157 .031 .5906 .0197 1.181 .138 .059 .039 %u2022 PICJ RP10D50-20 .197 .197 .039 .7480 .0197 1.378 .173 .075 .039 %u2022 PICJ RP10D60-25 .236 .236 .071 .9449 .0197 1.575 .209 .091 .039 %u2022 PICJ RP15D60-25 .236 .236 .071 .9449 .0295 1.575 .209 .091 .059 %u2022 PICJ RP20D60-25 .236 .236 .071 .9449 .0394 1.575 .209 .091 .079 %u2022 PICJ RP10D70-30 .276 .268 .098 1.1417 .0197 1.772 .248 .110 .039 %u2022 PICJ RP20D70-30 .276 .268 .098 1.1417 .0394 1.772 .248 .110 .079 %u2022 %u2022 Specify right- or left-hand bars %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Cutting depth maximum PICJ R/LPFull Radius Inserts with Inner Coolant Channel for Internal ProfilingLFDCONMSWF LU aCWRECDXDMINRight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF CW IC228PICCO R/L 004.0.50-16 .157 .157 .031 .5906 .0197 1.181 .138 .059 .039 %u2022 PICCO R/L 005.0.50-20 .197 .197 .039 .7480 .0197 1.378 .173 .075 .039 %u2022 PICCO R/L 005.0.75-20 .197 .197 .039 .7480 .0295 1.378 .173 .075 .059 %u2022 PICCO R/L 005.1.00-20 .197 .197 .039 .7480 .0394 1.378 .173 .075 .079 %u2022 PICCO R/L 006.0.50-25 .236 .236 .071 .9449 .0197 1.575 .209 .091 .039 %u2022 PICCO R/L 006.0.75-25 .236 .236 .071 .9449 .0295 1.575 .209 .091 .059 %u2022 PICCO R/L 006.1.00-25 .236 .236 .071 .9449 .0394 1.575 .209 .091 .079 %u2022 PICCO R/L 007.0.50-30 .276 .268 .098 1.1417 .0197 1.772 .248 .110 .039 %u2022 PICCO R/L 007.0.75-30 .276 .268 .098 1.1417 .0295 1.772 .248 .110 .059 %u2022 PICCO R/L 007.1.00-30 .276 .268 .098 1.1417 .0394 1.772 .248 .110 .079 %u2022 %u2022 Specify right- or left-hand bars(1) Cutting depth maximum PICCO R/L 004-007 (Radius)Full Radius Inserts for Internal Profiling
