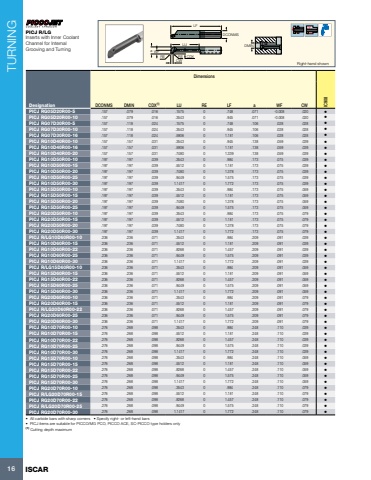

TURNING16 ISCARLFDCONMSLUa WFCWRE RE CDXDMINRight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF CW IC908PICJ RG05D20R00-5 .157 .079 .016 .1575 0 .748 .071 -0.008 .020 %u2022 PICJ RG05D20R00-10 .157 .079 .016 .3543 0 .945 .071 -0.008 .020 %u2022 PICJ RG07D30R00-5 .157 .118 .024 .1575 0 .748 .106 .028 .028 %u2022 PICJ RG07D30R00-10 .157 .118 .024 .3543 0 .945 .106 .028 .028 %u2022 PICJ RG07D30R00-16 .157 .118 .024 .5906 0 1.181 .106 .028 .028 %u2022 PICJ RG10D40R00-10 .157 .157 .031 .3543 0 .945 .138 .059 .039 %u2022 PICJ RG10D40R00-16 .157 .157 .031 .5906 0 1.181 .138 .059 .039 %u2022 PICJ RG10D40R00-20 .157 .157 .031 .7480 0 1.339 .138 .059 .039 %u2022 PICJ RG10D50R00-10 .197 .197 .039 .3543 0 .984 .173 .075 .039 %u2022 PICJ RG10D50R00-15 .197 .197 .039 .5512 0 1.181 .173 .075 .039 %u2022 PICJ RG10D50R00-20 .197 .197 .039 .7480 0 1.378 .173 .075 .039 %u2022 PICJ RG10D50R00-25 .197 .197 .039 .9449 0 1.575 .173 .075 .039 %u2022 PICJ RG10D50R00-30 .197 .197 .039 1.1417 0 1.772 .173 .075 .039 %u2022 PICJ RG15D50R00-10 .197 .197 .039 .3543 0 .984 .173 .075 .059 %u2022 PICJ RG15D50R00-15 .197 .197 .039 .5512 0 1.181 .173 .075 .059 %u2022 PICJ RG15D50R00-20 .197 .197 .039 .7480 0 1.378 .173 .075 .059 %u2022 PICJ RG15D50R00-25 .197 .197 .039 .9449 0 1.575 .173 .075 .059 %u2022 PICJ RG20D50R00-10 .197 .197 .039 .3543 0 .984 .173 .075 .079 %u2022 PICJ RG20D50R00-15 .197 .197 .039 .5512 0 1.181 .173 .075 .079 %u2022 PICJ RG20D50R00-20 .197 .197 .039 .7480 0 1.378 .173 .075 .079 %u2022 PICJ RG20D50R00-30 .197 .197 .039 1.1417 0 1.772 .173 .075 .079 %u2022 PICJ R/LG10D60R00-10 .236 .236 .071 .3543 0 .984 .209 .091 .039 %u2022 PICJ RG10D60R00-15 .236 .236 .071 .5512 0 1.181 .209 .091 .039 %u2022 PICJ RG10D60R00-22 .236 .236 .071 .8268 0 1.457 .209 .091 .039 %u2022 PICJ RG10D60R00-25 .236 .236 .071 .9449 0 1.575 .209 .091 .039 %u2022 PICJ RG10D60R00-30 .236 .236 .071 1.1417 0 1.772 .209 .091 .039 %u2022 PICJ R/LG15D60R00-10 .236 .236 .071 .3543 0 .984 .209 .091 .059 %u2022 PICJ RG15D60R00-15 .236 .236 .071 .5512 0 1.181 .209 .091 .059 %u2022 PICJ RG15D60R00-22 .236 .236 .071 .8268 0 1.457 .209 .091 .059 %u2022 PICJ RG15D60R00-25 .236 .236 .071 .9449 0 1.575 .209 .091 .059 %u2022 PICJ RG15D60R00-30 .236 .236 .071 1.1417 0 1.772 .209 .091 .059 %u2022 PICJ RG20D60R00-10 .236 .236 .071 .3543 0 .984 .209 .091 .079 %u2022 PICJ RG20D60R00-15 .236 .236 .071 .5512 0 1.181 .209 .091 .079 %u2022 PICJ R/LG20D60R00-22 .236 .236 .071 .8268 0 1.457 .209 .091 .079 %u2022 PICJ RG20D60R00-25 .236 .236 .071 .9449 0 1.575 .209 .091 .079 %u2022 PICJ RG20D60R00-30 .236 .236 .071 1.1417 0 1.772 .209 .091 .079 %u2022 PICJ RG10D70R00-10 .276 .268 .098 .3543 0 .984 .248 .110 .039 %u2022 PICJ RG10D70R00-15 .276 .268 .098 .5512 0 1.181 .248 .110 .039 %u2022 PICJ RG10D70R00-22 .276 .268 .098 .8268 0 1.457 .248 .110 .039 %u2022 PICJ RG10D70R00-25 .276 .268 .098 .9449 0 1.575 .248 .110 .039 %u2022 PICJ RG10D70R00-30 .276 .268 .098 1.1417 0 1.772 .248 .110 .039 %u2022 PICJ RG15D70R00-10 .276 .268 .098 .3543 0 .984 .248 .110 .059 %u2022 PICJ RG15D70R00-15 .276 .268 .098 .5512 0 1.181 .248 .110 .059 %u2022 PICJ RG15D70R00-22 .276 .268 .098 .8268 0 1.457 .248 .110 .059 %u2022 PICJ RG15D70R00-25 .276 .268 .098 .9449 0 1.575 .248 .110 .059 %u2022 PICJ RG15D70R00-30 .276 .268 .098 1.1417 0 1.772 .248 .110 .059 %u2022 PICJ RG20D70R00-10 .276 .268 .098 .3543 0 .984 .248 .110 .079 %u2022 PICJ R/LG20D70R00-15 .276 .268 .098 .5512 0 1.181 .248 .110 .079 %u2022 PICJ RG20D70R00-22 .276 .268 .098 .8268 0 1.457 .248 .110 .079 %u2022 PICJ R/LG20D70R00-25 .276 .268 .098 .9449 0 1.575 .248 .110 .079 %u2022 PICJ RG20D70R00-30 .276 .268 .098 1.1417 0 1.772 .248 .110 .079 %u2022 %u2022 All carbide bars with sharp corners %u2022 Specify right- or left-hand bars %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Cutting depth maximum PICJ R/LGInserts with Inner Coolant Channel for Internal Grooving and Turning
