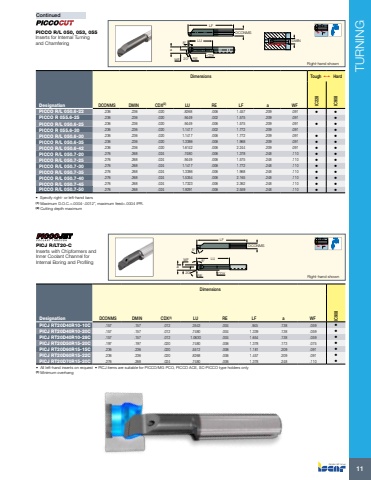

TURNING11aWF 20%u00b0 RELU 8%u00b0CDXLFDCONMSDMINRight-hand shownPICCO R/L 050, 053, 055Inserts for Internal Turning and ChamferingLF5%u00b08%u00b0RE 20%u00b0 CDXaWFDCONMSLURight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC908PICJ RT20D40R10-10C .157 .157 .012 .3543 .004 .945 .138 .059 %u2022 PICJ RT20D40R10-20C .157 .157 .012 .7480 .004 1.339 .138 .059 %u2022 PICJ RT20D40R10-28C .157 .157 .012 1.0630 .004 1.654 .138 .059 %u2022 PICJ RT20D50R15-20C .197 .197 .020 .7480 .006 1.378 .173 .075 %u2022 PICJ RT20D60R15-15C .236 .236 .020 .5512 .006 1.181 .209 .091 %u2022 PICJ RT20D60R15-22C .236 .236 .020 .8268 .006 1.457 .209 .091 %u2022 PICJ RT20D70R15-20C .276 .268 .024 .7480 .006 1.378 .248 .110 %u2022 %u2022 All left-hand inserts on request %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Minimum overhang PICJ R/LT20-CInserts with Chipformers and Inner Coolant Channel for Internal Boring and ProfilingDimensions Tough 1 HardDesignation DCONMS DMIN CDX(2) LU RE LF a WF IC228 IC908PICCO R/L 050.6-22 .236 .236 .020 .8268 .006 1.457 .209 .091 %u2022 %u2022 PICCO R 055.6-25 .236 .236 .020 .9449 .002 1.575 .209 .091 %u2022 PICCO R/L 050.6-25 .236 .236 .020 .9449 .006 1.575 .209 .091 %u2022 %u2022 PICCO R 055.6-30 .236 .236 .020 1.1417 .002 1.772 .209 .091 %u2022 PICCO R/L 050.6-30 .236 .236 .020 1.1417 .006 1.772 .209 .091 %u2022 %u2022 PICCO R/L 050.6-35 .236 .236 .020 1.3386 .006 1.968 .209 .091 %u2022 %u2022 PICCO R/L 050.6-42 .236 .236 .020 1.6142 .006 2.244 .209 .091 %u2022 %u2022 PICCO R/L 050.7-20 .276 .268 .024 .7480 .006 1.378 .248 .110 %u2022 %u2022 PICCO R/L 050.7-25 .276 .268 .024 .9449 .006 1.575 .248 .110 %u2022 %u2022 PICCO R/L 050.7-30 .276 .268 .024 1.1417 .006 1.772 .248 .110 %u2022 %u2022 PICCO R/L 050.7-35 .276 .268 .024 1.3386 .006 1.968 .248 .110 %u2022 %u2022 PICCO R/L 050.7-40 .276 .268 .024 1.5354 .006 2.165 .248 .110 %u2022 %u2022 PICCO R/L 050.7-45 .276 .268 .024 1.7323 .006 2.362 .248 .110 %u2022 %u2022 PICCO R/L 050.7-50 .276 .268 .024 1.9291 .006 2.559 .248 .110 %u2022 %u2022%u2022 Specify right- or left-hand bars(1) Maximum D.O.C.=.0004-.0012%u201d, maximum feed=.0004 IPR. (2) Cutting depth maximum Continued
