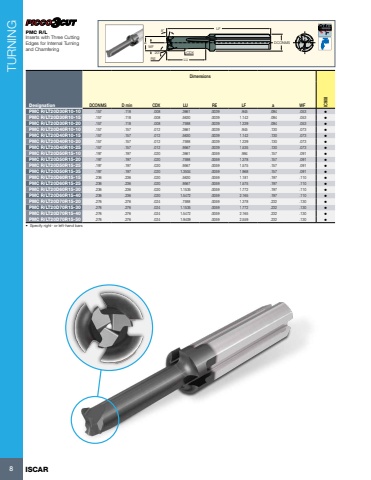

TURNING8 ISCARLFLU20%u02da CDX8%u02daa DCONMSWFREDimensionsDesignation DCONMS D min CDX LU RE LF a WF IC908PMC R/LT20D30R10-10 .157 .118 .008 .3661 .0039 .945 .094 .053 %u2022 PMC R/LT20D30R10-15 .157 .118 .008 .5630 .0039 1.142 .094 .053 %u2022 PMC R/LT20D30R10-20 .157 .118 .008 .7598 .0039 1.339 .094 .053 %u2022 PMC R/LT20D40R10-10 .157 .157 .012 .3661 .0039 .945 .130 .073 %u2022 PMC R/LT20D40R10-15 .157 .157 .012 .5630 .0039 1.142 .130 .073 %u2022 PMC R/LT20D40R10-20 .157 .157 .012 .7598 .0039 1.339 .130 .073 %u2022 PMC R/LT20D40R10-25 .157 .157 .012 .9567 .0039 1.535 .130 .073 %u2022 PMC R/LT20D50R15-10 .197 .197 .020 .3661 .0059 .984 .157 .091 %u2022 PMC R/LT20D50R15-20 .197 .197 .020 .7598 .0059 1.378 .157 .091 %u2022 PMC R/LT20D50R15-25 .197 .197 .020 .9567 .0059 1.575 .157 .091 %u2022 PMC R/LT20D50R15-35 .197 .197 .020 1.3504 .0059 1.968 .157 .091 %u2022 PMC R/LT20D60R15-15 .236 .236 .020 .5630 .0059 1.181 .197 .110 %u2022 PMC R/LT20D60R15-25 .236 .236 .020 .9567 .0059 1.575 .197 .110 %u2022 PMC R/LT20D60R15-30 .236 .236 .020 1.1535 .0059 1.772 .197 .110 %u2022 PMC R/LT20D60R15-40 .236 .236 .020 1.5472 .0059 2.165 .197 .110 %u2022 PMC R/LT20D70R15-20 .276 .276 .024 .7598 .0059 1.378 .232 .130 %u2022 PMC R/LT20D70R15-30 .276 .276 .024 1.1535 .0059 1.772 .232 .130 %u2022 PMC R/LT20D70R15-40 .276 .276 .024 1.5472 .0059 2.165 .232 .130 %u2022 PMC R/LT20D70R15-50 .276 .276 .024 1.9409 .0059 2.559 .232 .130 %u2022 %u2022 Specify right- or left-hand barsPMC R/LInserts with Three Cutting Edges for Internal Turning and Chamfering
