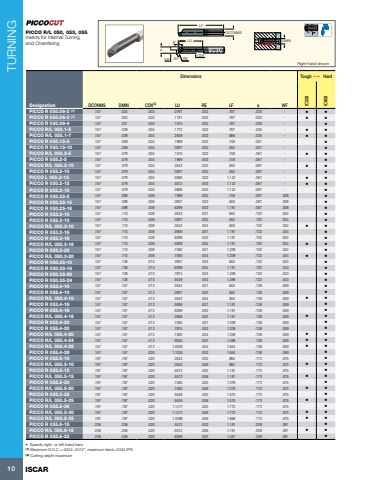

TURNING10 ISCARaWF 20%u00b0 RELU 8%u00b0CDXLFDCONMSDMINRight-hand shownPICCO R/L 050, 053, 055Inserts for Internal Turning and ChamferingDimensions Tough 1 HardDesignation DCONMS DMIN CDX(2) LU RE LF a WF IC228 IC908PICCO R 050.06-2 (1) .157 .024 .003 .0787 .002 .787 .020 - %u2022 %u2022 PICCO R 050.06-3 (1) .157 .024 .003 .1181 .002 .787 .020 - %u2022 %u2022 PICCO R 050.08-4 .157 .031 .003 .1575 .002 .787 .028 - %u2022 PICCO R/L 050.1-5 .157 .039 .004 .1772 .002 .787 .035 - %u2022 %u2022 PICCO R/L 050.1-7 .157 .039 .004 .2559 .002 .866 .035 - %u2022 %u2022 PICCO R 050.15-5 .157 .059 .004 .1969 .002 .748 .051 - %u2022 PICCO R 050.15-10 .157 .059 .004 .3937 .002 .945 .051 - %u2022 PICCO R/L 050.2-5 .157 .079 .004 .1575 .002 .748 .067 - %u2022 %u2022 PICCO R 055.2-5 .157 .079 .004 .1969 .002 .748 .067 - %u2022 PICCO R/L 050.2-10 .157 .079 .004 .3543 .002 .945 .067 - %u2022 %u2022 PICCO R 055.2-10 .157 .079 .004 .3937 .002 .945 .067 - %u2022 PICCO L 050.2-15 .157 .079 .004 .5906 .002 1.142 .067 - %u2022 %u2022 PICCO R 050.2-15 .157 .079 .004 .5512 .002 1.142 .067 - %u2022 %u2022 PICCO R 055.2-15 .157 .079 .004 .5906 .002 1.142 .067 - %u2022 PICCO R 050.25-5 .157 .098 .006 .1969 .002 .748 .087 .008 %u2022 PICCO R 050.25-10 .157 .098 .006 .3937 .003 .945 .087 .008 %u2022 PICCO R 050.25-16 .157 .098 .006 .6299 .003 1.181 .087 .008 %u2022 PICCO R 053.3-10 .157 .110 .008 .3543 .001 .945 .102 .024 %u2022 PICCO R 055.3-10 .157 .110 .008 .3937 .002 .945 .102 .024 %u2022 PICCO R/L 050.3-10 .157 .110 .008 .3543 .004 .945 .102 .024 %u2022 %u2022 PICCO R 053.3-16 .157 .110 .008 .5906 .001 1.181 .102 .024 %u2022 PICCO R 055.3-16 .157 .110 .008 .6299 .002 1.181 .102 .024 %u2022 PICCO R/L 050.3-16 .157 .110 .008 .5906 .004 1.181 .102 .024 %u2022 %u2022 PICCO R 053.3-20 .157 .110 .008 .7480 .001 1.339 .102 .024 %u2022 PICCO R/L 050.3-20 .157 .110 .008 .7480 .004 1.339 .102 .024 %u2022 %u2022 PICCO R 050.35-10 .157 .138 .010 .3937 .004 .945 .122 .043 %u2022 PICCO R 050.35-16 .157 .138 .010 .6299 .004 1.181 .122 .043 %u2022 PICCO R 050.35-20 .157 .138 .010 .7874 .004 1.339 .122 .043 %u2022 PICCO R 050.35-24 .157 .138 .010 .9449 .004 1.496 .122 .043 %u2022 PICCO R 053.4-10 .157 .157 .012 .3543 .001 .945 .138 .059 %u2022 PICCO R 055.4-10 .157 .157 .012 .3937 .002 .945 .138 .059 %u2022 PICCO R/L 050.4-10 .157 .157 .012 .3543 .004 .945 .138 .059 %u2022 %u2022 PICCO R 053.4-16 .157 .157 .012 .5906 .001 1.181 .138 .059 %u2022 PICCO R 055.4-16 .157 .157 .012 .6299 .002 1.181 .138 .059 %u2022 PICCO R/L 050.4-16 .157 .157 .012 .5906 .004 1.181 .138 .059 %u2022 %u2022 PICCO R 053.4-20 .157 .157 .012 .7480 .001 1.339 .138 .059 %u2022 PICCO R 055.4-20 .157 .157 .012 .7874 .002 1.339 .138 .059 %u2022 PICCO R/L 050.4-20 .157 .157 .012 .7480 .004 1.339 .138 .059 %u2022 %u2022 PICCO R/L 050.4-24 .157 .157 .012 .9055 .004 1.496 .138 .059 %u2022 %u2022 PICCO R/L 050.4-28 .157 .157 .012 1.0630 .004 1.654 .138 .059 %u2022 %u2022 PICCO R 055.4-28 .157 .157 .020 1.1024 .002 1.654 .138 .059 %u2022 PICCO R 055.5-10 .197 .197 .020 .3543 .002 .984 .173 .075 %u2022 PICCO R/L 050.5-10 .197 .197 .020 .3543 .006 .984 .173 .075 %u2022 %u2022 PICCO R 055.5-15 .197 .197 .020 .5512 .002 1.181 .173 .075 %u2022 PICCO R/L 050.5-15 .197 .197 .020 .5512 .006 1.181 .173 .075 %u2022 %u2022 PICCO R 055.5-20 .197 .197 .020 .7480 .002 1.378 .173 .075 %u2022 PICCO R/L 050.5-20 .197 .197 .020 .7480 .006 1.378 .173 .075 %u2022 %u2022 PICCO R 055.5-25 .197 .197 .020 .9449 .002 1.575 .173 .075 %u2022 PICCO R/L 050.5-25 .197 .197 .020 .9449 .006 1.575 .173 .075 %u2022 %u2022 PICCO R 055.5-30 .197 .197 .020 1.1417 .002 1.772 .173 .075 %u2022 PICCO R/L 050.5-30 .197 .197 .020 1.1417 .006 1.772 .173 .075 %u2022 %u2022 PICCO R/L 050.5-35 .197 .197 .020 1.3386 .006 1.968 .173 .075 %u2022 %u2022 PICCO R 055.6-15 .236 .236 .020 .5512 .002 1.181 .209 .091 %u2022 PICCO R/L 050.6-15 .236 .236 .020 .5512 .006 1.181 .209 .091 %u2022 %u2022 PICCO R 055.6-22 .236 .236 .020 .8268 .002 1.457 .209 .091 %u2022%u2022 Specify right- or left-hand bars(1) Maximum D.O.C.=.0004-.0012%u201d, maximum feed=.0004 IPR. (2) Cutting depth maximum
