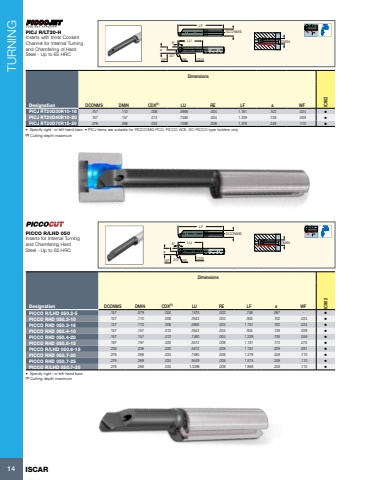

TURNING14 ISCARaWF 20%u00b0 RE8%u00b0CDXLFDCONMSLU DMINDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC902PICCO R/LHD 050.2-5 .157 .079 .004 .1575 .002 .748 .067 - %u2022 PICCO RHD 050.3-10 .157 .110 .008 .3543 .004 .945 .102 .024 %u2022 PICCO RHD 050.3-16 .157 .110 .008 .5906 .004 1.181 .102 .024 %u2022 PICCO RHD 050.4-10 .157 .157 .012 .3543 .004 .945 .138 .059 %u2022 PICCO RHD 050.4-20 .157 .157 .012 .7480 .004 1.339 .138 .059 %u2022 PICCO RHD 050.5-15 .197 .197 .020 .5512 .006 1.181 .173 .075 %u2022 PICCO R/LHD 050.6-15 .236 .236 .020 .5512 .006 1.181 .209 .091 %u2022 PICCO RHD 050.7-20 .276 .268 .024 .7480 .006 1.378 .248 .110 %u2022 PICCO RHD 050.7-25 .276 .268 .024 .9449 .006 1.575 .248 .110 %u2022 PICCO R/LHD 050.7-35 .276 .268 .024 1.3386 .006 1.968 .248 .110 %u2022 %u2022 Specify right- or left-hand bars(1) Cutting depth maximum PICCO R/LHD 050Inserts for Internal Turning and Chamfering Hard Steel - Up to 65 HRCaWF RE 20%u00b08%u00b0CDXLFDCONMSLU DMINDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC902PICJ RT20D30R10-16 .157 .110 .008 .5906 .004 1.181 .102 .024 %u2022 PICJ RT20D40R10-20 .157 .157 .012 .7480 .004 1.339 .138 .059 %u2022 PICJ RT20D70R15-20 .276 .268 .024 .7480 .006 1.378 .248 .110 %u2022 %u2022 Specify right- or left-hand bars %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Cutting depth maximum PICJ R/LT20-HInserts with Inner Coolant Channel for Internal Turning and Chamfering of Hard Steel - Up to 65 HRC
