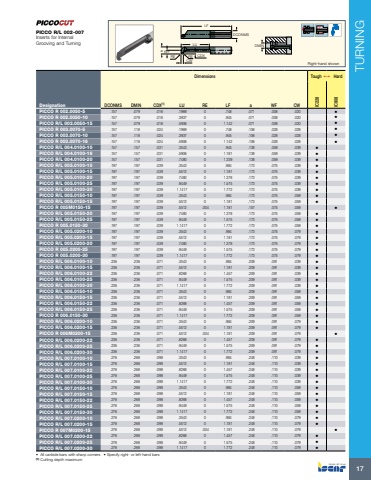

TURNING17LFDCONMSLUa WFCWRE RE CDXDMINRight-hand shownDimensions Tough 1 HardDesignation DCONMS DMIN CDX(1) LU RE LF a WF CW IC228 IC908PICCO R 002.0050-5 .157 .079 .016 .1969 0 .748 .071 .008 .020 %u2022 PICCO R 002.0050-10 .157 .079 .016 .3937 0 .945 .071 .008 .020 %u2022 PICCO R/L 002.0050-15 .157 .079 .016 .5906 0 1.142 .071 .008 .020 %u2022 PICCO R 003.0070-5 .157 .118 .024 .1969 0 .748 .106 .028 .028 %u2022 PICCO R 003.0070-10 .157 .118 .024 .3937 0 .945 .106 .028 .028 %u2022 PICCO R 003.0070-16 .157 .118 .024 .5906 0 1.142 .106 .028 .028 %u2022 PICCO R/L 004.0100-10 .157 .157 .031 .3543 0 .945 .138 .059 .039 %u2022 PICCO R/L 004.0100-16 .157 .157 .031 .5906 0 1.181 .138 .059 .039 %u2022 PICCO R/L 004.0100-20 .157 .157 .031 .7480 0 1.339 .138 .059 .039 %u2022 PICCO R/L 005.0100-10 .197 .197 .039 .3543 0 .984 .173 .075 .039 %u2022 PICCO R/L 005.0100-15 .197 .197 .039 .5512 0 1.181 .173 .075 .039 %u2022 PICCO R/L 005.0100-20 .197 .197 .039 .7480 0 1.378 .173 .075 .039 %u2022 PICCO R/L 005.0100-25 .197 .197 .039 .9449 0 1.575 .173 .075 .039 %u2022 PICCO R/L 005.0100-30 .197 .197 .039 1.1417 0 1.772 .173 .075 .039 %u2022 PICCO R/L 005.0150-10 .197 .197 .039 .3543 0 .984 .173 .075 .059 %u2022 PICCO R/L 005.0150-15 .197 .197 .039 .5512 0 1.181 .173 .075 .059 %u2022 PICCO R 005M0150-15 .197 .197 .039 .5512 .004 1.181 .157 .075 .059 %u2022 PICCO R/L 005.0150-20 .197 .197 .039 .7480 0 1.378 .173 .075 .059 %u2022 PICCO R/L 005.0150-25 .197 .197 .039 .9449 0 1.575 .173 .075 .059 %u2022 PICCO R 005.0150-30 .197 .197 .039 1.1417 0 1.772 .173 .075 .059 %u2022 PICCO R/L 005.0200-10 .197 .197 .039 .3543 0 .984 .173 .075 .079 %u2022 PICCO R/L 005.0200-15 .197 .197 .039 .5512 0 1.181 .173 .075 .079 %u2022 PICCO R/L 005.0200-20 .197 .197 .039 .7480 0 1.378 .173 .075 .079 %u2022 PICCO R 005.0200-25 .197 .197 .039 .9449 0 1.575 .173 .075 .079 %u2022 PICCO R 005.0200-30 .197 .197 .039 1.1417 0 1.772 .173 .075 .079 %u2022 PICCO R/L 006.0100-10 .236 .236 .071 .3543 0 .984 .209 .091 .039 %u2022 PICCO R/L 006.0100-15 .236 .236 .071 .5512 0 1.181 .209 .091 .039 %u2022 PICCO R/L 006.0100-22 .236 .236 .071 .8268 0 1.457 .209 .091 .039 %u2022 PICCO R/L 006.0100-25 .236 .236 .071 .9449 0 1.575 .209 .091 .039 %u2022 PICCO R/L 006.0100-30 .236 .236 .071 1.1417 0 1.772 .209 .091 .039 %u2022 PICCO R/L 006.0150-10 .236 .236 .071 .3543 0 .984 .209 .091 .059 %u2022 PICCO R/L 006.0150-15 .236 .236 .071 .5512 0 1.181 .209 .091 .059 %u2022 PICCO R/L 006.0150-22 .236 .236 .071 .8268 0 1.457 .209 .091 .059 %u2022 PICCO R/L 006.0150-25 .236 .236 .071 .9449 0 1.575 .209 .091 .059 %u2022 PICCO R 006.0150-30 .236 .236 .071 1.1417 0 1.772 .209 .091 .059 %u2022 PICCO R/L 006.0200-10 .236 .236 .071 .3543 0 .984 .209 .091 .079 %u2022 PICCO R/L 006.0200-15 .236 .236 .071 .5512 0 1.181 .209 .091 .079 %u2022 PICCO R 006M0200-15 .236 .236 .071 .5512 .004 1.181 .209 .091 .079 %u2022 PICCO R/L 006.0200-22 .236 .236 .071 .8268 0 1.457 .209 .091 .079 %u2022 PICCO R/L 006.0200-25 .236 .236 .071 .9449 0 1.575 .209 .091 .079 %u2022 PICCO R/L 006.0200-30 .236 .236 .071 1.1417 0 1.772 .209 .091 .079 %u2022 PICCO R/L 007.0100-10 .276 .268 .098 .3543 0 .984 .248 .110 .039 %u2022 PICCO R/L 007.0100-15 .276 .268 .098 .5512 0 1.181 .248 .110 .039 %u2022 PICCO R/L 007.0100-22 .276 .268 .098 .8268 0 1.457 .248 .110 .039 %u2022 PICCO R/L 007.0100-25 .276 .268 .098 .9449 0 1.575 .248 .110 .039 %u2022 PICCO R/L 007.0100-30 .276 .268 .098 1.1417 0 1.772 .248 .110 .039 %u2022 PICCO R/L 007.0150-10 .276 .268 .098 .3543 0 .984 .248 .110 .059 %u2022 PICCO R/L 007.0150-15 .276 .268 .098 .5512 0 1.181 .248 .110 .059 %u2022 PICCO R/L 007.0150-22 .276 .268 .098 .8268 0 1.457 .248 .110 .059 %u2022 PICCO R/L 007.0150-25 .276 .268 .098 .9449 0 1.575 .248 .110 .059 %u2022 PICCO R/L 007.0150-30 .276 .268 .098 1.1417 0 1.772 .248 .110 .059 %u2022 PICCO R/L 007.0200-10 .276 .268 .098 .3543 0 .984 .248 .110 .079 %u2022 PICCO R/L 007.0200-15 .276 .268 .098 .5512 0 1.181 .248 .110 .079 %u2022 PICCO R 007M0200-15 .276 .268 .098 .5512 .004 1.181 .248 .110 .079 %u2022 PICCO R/L 007.0200-22 .276 .268 .098 .8268 0 1.457 .248 .110 .079 %u2022 PICCO R/L 007.0200-25 .276 .268 .098 .9449 0 1.575 .248 .110 .079 %u2022 PICCO R/L 007.0200-30 .276 .268 .098 1.1417 0 1.772 .248 .110 .079 %u2022 %u2022 All carbide bars with sharp corners %u2022 Specify right- or left-hand bars (1) Cutting depth maximum PICCO R/L 002-007Inserts for Internal Grooving and Turning
