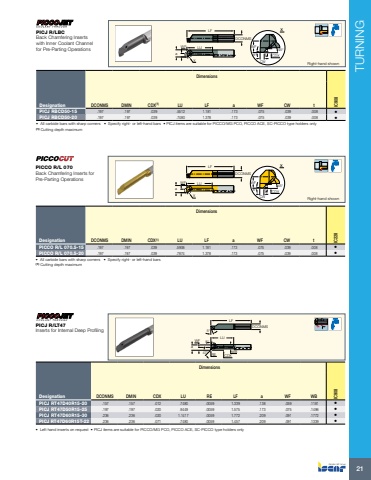

TURNING21LFDCONMSLUaWFX X8%u00b045%u00b0 WFCWt CDXRight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU LF a WF CW t IC228PICCO R/L 070.5-15 .197 .197 .039 .5906 1.181 .173 .075 .039 .008 %u2022 PICCO R/L 070.5-20 .197 .197 .039 .7874 1.378 .173 .075 .039 .008 %u2022 %u2022 All carbide bars with sharp corners %u2022 Specify right- or left-hand bars(1) Cutting depth maximum PICCO R/L 070Back Chamfering Inserts for Pre-Parting OperationsLFDCONMSLUaWFX X8%u00b045%u00b0 WFCWt CDXRight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU LF a WF CW t IC908PICJ RBCD50-15 .197 .197 .039 .5512 1.181 .173 .075 .039 .008 %u2022 PICJ RBCD50-20 .197 .197 .039 .7480 1.378 .173 .075 .039 .008 %u2022 %u2022 All carbide bars with sharp corners %u2022 Specify right- or left-hand bars %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Cutting depth maximum PICJ R/LBCBack Chamfering Inserts with Inner Coolant Channel for Pre-Parting Operations5%u00b047%u00b0a8%u00b0WBLFRE CDXWFDCONMSLUDimensionsDesignation DCONMS DMIN CDX LU RE LF a WF WB IC908PICJ RT47D40R15-20 .157 .157 .012 .7480 .0059 1.339 .138 .059 .1181 %u2022 PICJ RT47D50R15-25 .197 .197 .020 .9449 .0059 1.575 .173 .075 .1496 %u2022 PICJ RT47D60R15-30 .236 .236 .020 1.1417 .0059 1.772 .209 .091 .1772 %u2022 PICJ RT47D60R15T-22 .236 .236 .071 .7480 .0059 1.457 .209 .091 .1339 %u2022%u2022 Left hand inserts on request %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders onlyPICJ R/LT47Inserts for Internal Deep Profiling
