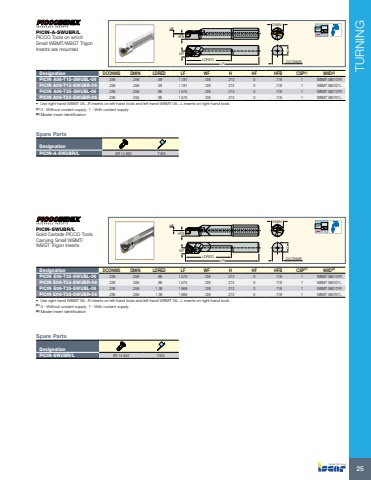

TURNING25WFLDREDLFHFHFBDMINHDCONMS93%u00baDesignation DCONMS DMIN LDRED LF WF H HF HFB CSP(1) MIID(2)PICIN A06-T15-SWUBL-06 .236 .256 .59 1.181 .128 .213 0 .118 1 WBMT 060101RPICIN A06-T15-SWUBR-06 .236 .256 .59 1.181 .128 .213 0 .118 1 WBMT 060101LPICIN A06-T25-SWUBL-06 .236 .256 .98 1.575 .128 .213 0 .118 1 WBMT 060101RPICIN A06-T25-SWUBR-06 .236 .256 .98 1.575 .128 .213 0 .118 1 WBMT 060101L%u2022 Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools(1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification Spare PartsDesignationPICIN-A-SWUBR/L SR 14-552 T-6/5PICIN-A-SWUBR/LPICCO Tools on which Small WBMT/WBGT Trigon Inserts are mountedWFLDREDLFHFHFBDMINHDCONMS93%u00baDesignation DCONMS DMIN LDRED LF WF H HF HFB CSP(1) MIID(2)PICIN E06-T25-SWUBL-06 .236 .256 .98 1.575 .128 .213 0 .118 1 WBMT 060101RPICIN E06-T25-SWUBR-06 .236 .256 .98 1.575 .128 .213 0 .118 1 WBMT 060101LPICIN E06-T35-SWUBL-06 .236 .256 1.38 1.968 .128 .213 0 .118 1 WBMT 060101RPICIN E06-T35-SWUBR-06 .236 .256 1.38 1.968 .128 .213 0 .118 1 WBMT 060101L%u2022 Use right-hand WBMT 06...R inserts on left-hand tools and left-hand WBMT 06...L inserts on right-hand tools(1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification Spare PartsDesignationPICIN-SWUBR/L SR 14-552 T-6/5PICIN-SWUBR/LSolid Carbide PICCO Tools Carrying Small WBMT/WBGT Trigon Inserts
