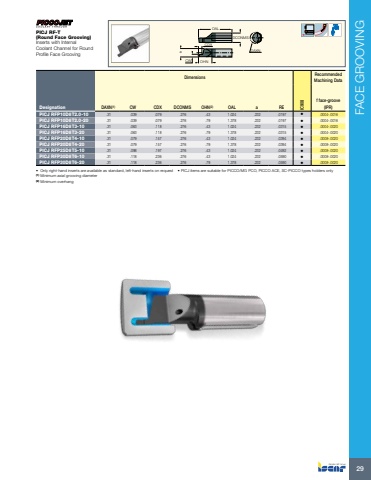

FACE GROOVING29DAXNDCONMSOALCDXCWaOHNDimensions Recommended Machining DataDesignation DAXN(1) CW CDX DCONMS OHN(2) OAL a RE IC908f face-groove(IPR)PICJ RFP10D8T2.0-10 .31 .039 .079 .276 .43 1.024 .232 .0197 %u2022 .0004-.0016PICJ RFP10D8T2.0-20 .31 .039 .079 .276 .79 1.378 .232 .0197 %u2022 .0004-.0016PICJ RFP16D8T3-10 .31 .063 .118 .276 .43 1.024 .232 .0315 %u2022 .0004-.0020PICJ RFP16D8T3-20 .31 .063 .118 .276 .79 1.378 .232 .0315 %u2022 .0004-.0020PICJ RFP20D8T4-10 .31 .079 .157 .276 .43 1.024 .232 .0394 %u2022 .0008-.0020PICJ RFP20D8T4-20 .31 .079 .157 .276 .79 1.378 .232 .0394 %u2022 .0008-.0020PICJ RFP25D8T5-10 .31 .098 .197 .276 .43 1.024 .232 .0492 %u2022 .0008-.0020PICJ RFP30D8T6-10 .31 .118 .236 .276 .43 1.024 .232 .0590 %u2022 .0008-.0020PICJ RFP30D8T6-20 .31 .118 .236 .276 .79 1.378 .232 .0590 %u2022 .0008-.0020%u2022 Only right-hand inserts are available as standard, left-hand inserts on request %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO types holders only(1) Minimum axial grooving diameter (2) Minimum overhang PICJ RF-T (Round Face Grooving)Inserts with Internal Coolant Channel for Round Profile Face Grooving
