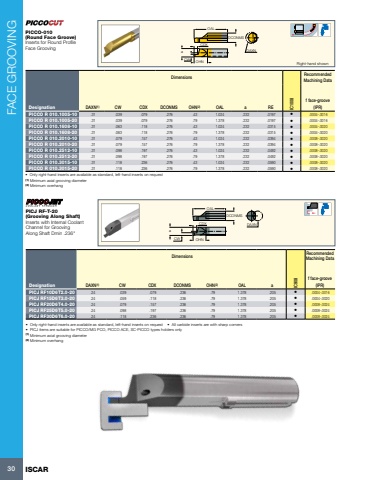

FACE GROOVING30 ISCARDAXNDCONMSOALCDXCWaOHN Right-hand shownDimensions Recommended Machining DataDesignation DAXN(1) CW CDX DCONMS OHN(2) OAL a RE IC1008f face-groove(IPR)PICCO R 010.1005-10 .31 .039 .079 .276 .43 1.024 .232 .0197 %u2022 .0004-.0016PICCO R 010.1005-20 .31 .039 .079 .276 .79 1.378 .232 .0197 %u2022 .0004-.0016PICCO R 010.1608-10 .31 .063 .118 .276 .43 1.024 .232 .0315 %u2022 .0004-.0020PICCO R 010.1608-20 .31 .063 .118 .276 .79 1.378 .232 .0315 %u2022 .0004-.0020PICCO R 010.2010-10 .31 .079 .157 .276 .43 1.024 .232 .0394 %u2022 .0008-.0020PICCO R 010.2010-20 .31 .079 .157 .276 .79 1.378 .232 .0394 %u2022 .0008-.0020PICCO R 010.2512-10 .31 .098 .197 .276 .43 1.024 .232 .0492 %u2022 .0008-.0020PICCO R 010.2512-20 .31 .098 .197 .276 .79 1.378 .232 .0492 %u2022 .0008-.0020PICCO R 010.3015-10 .31 .118 .236 .276 .43 1.024 .232 .0590 %u2022 .0008-.0020PICCO R 010.3015-20 .31 .118 .236 .276 .79 1.378 .232 .0590 %u2022 .0008-.0020%u2022 Only right-hand inserts are available as standard, left-hand inserts on request (1) Minimum axial grooving diameter (2) Minimum overhang PICCO-010(Round Face Groove)Inserts for Round Profile Face GroovingOHNDAXNDCONMSOALCDXaCWDimensions Recommended Machining DataDesignation DAXN(1) CW CDX DCONMS OHN(2) OAL a IC908f face-groove(IPR)PICJ RF10D6T2.0-20 .24 .039 .079 .236 .79 1.378 .205 %u2022 .0004-.0016PICJ RF15D6T3.0-20 .24 .059 .118 .236 .79 1.378 .205 %u2022 .0004-.0020PICJ RF20D6T4.0-20 .24 .079 .157 .236 .79 1.378 .205 %u2022 .0008-.0024PICJ RF25D6T5.0-20 .24 .098 .197 .236 .79 1.378 .205 %u2022 .0008-.0024PICJ RF30D6T6.0-20 .24 .118 .236 .236 .79 1.378 .205 %u2022 .0008-.0024%u2022 Only right-hand inserts are available as standard, left-hand inserts on request %u2022 All carbide inserts are with sharp corners %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO types holders only(1) Minimum axial grooving diameter (2) Minimum overhang PICJ RF-T-20 (Grooving Along Shaft)Inserts with Internal Coolant Channel for Grooving Along Shaft Dmin .236\
