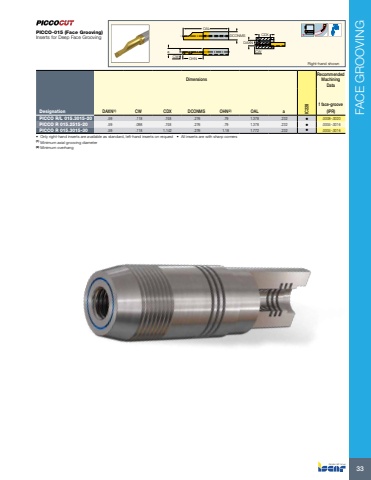

FACE GROOVING33aCW OHNDCONMSOALDAXNCDXCWRight-hand shownDimensionsRecommended Machining DataDesignation DAXN(1) CW CDX DCONMS OHN(2) OAL a IC228f face-groove(IPR)PICCO R/L 015.3015-20 .59 .118 .748 .276 .79 1.378 .232 %u2022 .0008-.0020PICCO R 015.2515-20 .59 .098 .748 .276 .79 1.378 .232 %u2022 .0004-.0016PICCO R 015.3015-30 .59 .118 1.142 .276 1.18 1.772 .232 %u2022 .0004-.0016%u2022 Only right-hand inserts are available as standard, left-hand inserts on request %u2022 All inserts are with sharp corners(1) Minimum axial grooving diameter (2) Minimum overhang PICCO-015 (Face Grooving)Inserts for Deep Face Grooving
