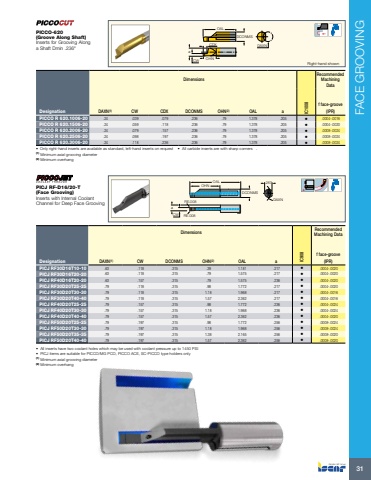

FACE GROOVING31OHNDAXNDCONMSOALCDXaCW Right-hand shownDimensionsRecommended Machining DataDesignation DAXN(1) CW CDX DCONMS OHN(2) OAL a IC1008f face-groove(IPR)PICCO R 620.1006-20 .24 .039 .079 .236 .79 1.378 .205 %u2022 .0004-.0016PICCO R 620.1506-20 .24 .059 .118 .236 .79 1.378 .205 %u2022 .0004-.0020PICCO R 620.2006-20 .24 .079 .157 .236 .79 1.378 .205 %u2022 .0008-.0024PICCO R 620.2506-20 .24 .098 .197 .236 .79 1.378 .205 %u2022 .0008-.0024PICCO R 620.3006-20 .24 .118 .236 .236 .79 1.378 .205 %u2022 .0008-.0024%u2022 Only right-hand inserts are available as standard, left-hand inserts on request %u2022 All carbide inserts are with sharp corners .(1) Minimum axial grooving diameter (2) Minimum overhang PICCO-620(Groove Along Shaft)Inserts for Grooving Along a Shaft Dmin .236\RE.008CW RE.008aOALOHNDCONMS.287DAXNDimensions Recommended Machining DataDesignation DAXN(1) CW DCONMS OHN(2) OAL a IC908f face-groove(IPR)PICJ RF30D16T10-10 .63 .118 .315 .39 1.181 .217 %u2022 .0004-.0020PICJ RF30D16T20-20 .63 .118 .315 .79 1.575 .217 %u2022 .0004-.0020PICJ RF40D16T20-20 .63 .157 .315 .79 1.575 .236 %u2022 .0004-.0020PICJ RF30D20T25-25 .79 .118 .315 .98 1.772 .217 %u2022 .0004-.0020PICJ RF30D20T30-30 .79 .118 .315 1.18 1.968 .217 %u2022 .0004-.0016PICJ RF30D20T40-40 .79 .118 .315 1.57 2.362 .217 %u2022 .0004-.0016PICJ RF40D20T25-25 .79 .157 .315 .98 1.772 .236 %u2022 .0004-.0024PICJ RF40D20T30-30 .79 .157 .315 1.18 1.968 .236 %u2022 .0004-.0024PICJ RF40D20T40-40 .79 .157 .315 1.57 2.362 .236 %u2022 .0004-.0020PICJ RF50D20T25-25 .79 .197 .315 .98 1.772 .256 %u2022 .0008-.0024PICJ RF50D20T30-30 .79 .197 .315 1.18 1.968 .256 %u2022 .0008-.0024PICJ RF50D20T35-35 .79 .197 .315 1.38 2.165 .256 %u2022 .0008-.0020PICJ RF50D20T40-40 .79 .197 .315 1.57 2.362 .256 %u2022 .0008-.0020%u2022 All inserts have two coolant holes which may be used with coolant pressure up to 1450 PSI %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Minimum axial grooving diameter (2) Minimum overhang PICJ RF-D16/20-T (Face Grooving)Inserts with Internal Coolant Channel for Deep Face Grooving
