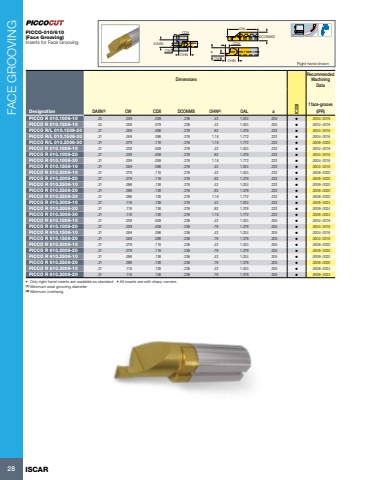

FACE GROOVING28 ISCAROALDCONMSCDXaCW OHNDAXNCDXCWOHNRight-hand shownDimensionsRecommended Machining DataDesignation DAXN(1) CW CDX DCONMS OHN(2) OAL a IC228f face-groove(IPR)PICCO R 010.1006-10 .24 .039 .059 .236 .43 1.024 .205 %u2022 .0004-.0016PICCO R 010.1506-10 .24 .059 .079 .236 .43 1.024 .205 %u2022 .0004-.0016PICCO R/L 010.1508-20 .31 .059 .098 .276 .83 1.378 .232 %u2022 .0004-.0016PICCO R/L 010.1508-30 .31 .059 .098 .276 1.18 1.772 .232 %u2022 .0004-.0016PICCO R/L 010.2008-30 .31 .079 .118 .276 1.18 1.772 .232 %u2022 .0008-.0020PICCO R 010.1008-10 .31 .039 .059 .276 .43 1.024 .232 %u2022 .0004-.0016PICCO R 010.1008-20 .31 .039 .059 .276 .83 1.378 .232 %u2022 .0004-.0016PICCO R 010.1008-30 .31 .039 .059 .276 1.18 1.772 .232 %u2022 .0004-.0016PICCO R 010.1508-10 .31 .059 .098 .276 .43 1.024 .232 %u2022 .0004-.0016PICCO R 010.2008-10 .31 .079 .118 .276 .43 1.024 .232 %u2022 .0008-.0020PICCO R 010.2008-20 .31 .079 .118 .276 .83 1.378 .232 %u2022 .0008-.0020PICCO R 010.2508-10 .31 .098 .138 .276 .43 1.024 .232 %u2022 .0008-.0020PICCO R 010.2508-20 .31 .098 .138 .276 .83 1.378 .232 %u2022 .0008-.0020PICCO R 010.2508-30 .31 .098 .138 .276 1.18 1.772 .232 %u2022 .0008-.0020PICCO R 010.3008-10 .31 .118 .138 .276 .43 1.024 .232 %u2022 .0008-.0024PICCO R 010.3008-20 .31 .118 .138 .276 .83 1.378 .232 %u2022 .0008-.0024PICCO R 010.3008-30 .31 .118 .138 .276 1.18 1.772 .232 %u2022 .0008-.0024PICCO R 610.1008-10 .31 .039 .059 .236 .43 1.024 .205 %u2022 .0004-.0016PICCO R 610.1008-20 .31 .039 .059 .236 .79 1.378 .205 %u2022 .0004-.0016PICCO R 610.1508-10 .31 .059 .098 .236 .43 1.024 .205 %u2022 .0004-.0016PICCO R 610.1508-20 .31 .059 .098 .236 .79 1.378 .205 %u2022 .0004-.0016PICCO R 610.2008-10 .31 .079 .118 .236 .43 1.024 .205 %u2022 .0008-.0020PICCO R 610.2008-20 .31 .079 .118 .236 .79 1.378 .205 %u2022 .0008-.0020PICCO R 610.2508-10 .31 .098 .138 .236 .43 1.024 .205 %u2022 .0008-.0020PICCO R 610.2508-20 .31 .098 .138 .236 .79 1.378 .205 %u2022 .0008-.0020PICCO R 610.3008-10 .31 .118 .138 .236 .43 1.024 .205 %u2022 .0008-.0024PICCO R 610.3008-20 .31 .118 .138 .236 .79 1.378 .205 %u2022 .0008-.0024%u2022 Only right-hand inserts are available as standard %u2022 All inserts are with sharp corners.(1) Minimum axial grooving diameter (2) Minimum overhang PICCO-010/610 (Face Grooving)Inserts for Face Grooving
