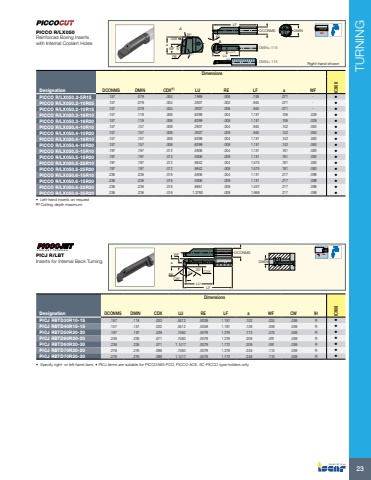

TURNING23LFDCONMSCDXA6%u00b0 45%u00b06%u00b07%u00b0 DMINREaWFALU.008DMIN%u2265.118DMIN<.118 Right-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC908PICCO R/LX050.2-5R15 .157 .079 .004 .1969 .006 .748 .071 - %u2022 PICCO R/LX050.2-10R05 .157 .079 .004 .3937 .002 .945 .071 - %u2022 PICCO R/LX050.2-10R15 .157 .079 .004 .3937 .006 .945 .071 - %u2022 PICCO R/LX050.3-16R10 .157 .118 .006 .6299 .004 1.181 .106 .028 %u2022 PICCO R/LX050.3-16R20 .157 .118 .006 .6299 .008 1.181 .106 .028 %u2022 PICCO R/LX050.4-10R10 .157 .157 .008 .3937 .004 .945 .142 .063 %u2022 PICCO R/LX050.4-10R20 .157 .157 .008 .3937 .008 .945 .142 .063 %u2022 PICCO R/LX050.4-16R10 .157 .157 .008 .6299 .004 1.181 .142 .063 %u2022 PICCO R/LX050.4-16R20 .157 .157 .008 .6299 .008 1.181 .142 .063 %u2022 PICCO R/LX050.5-15R10 .197 .197 .012 .5906 .004 1.181 .181 .083 %u2022 PICCO R/LX050.5-15R20 .197 .197 .012 .5906 .008 1.181 .181 .083 %u2022 PICCO R/LX050.5-25R10 .197 .197 .012 .9842 .004 1.575 .181 .083 %u2022 PICCO R/LX050.5-25R20 .197 .197 .012 .9842 .008 1.575 .181 .083 %u2022 PICCO R/LX050.6-15R10 .236 .236 .016 .5906 .004 1.181 .217 .098 %u2022 PICCO R/LX050.6-15R20 .236 .236 .016 .5906 .008 1.181 .217 .098 %u2022 PICCO R/LX050.6-22R20 .236 .236 .016 .8661 .008 1.457 .217 .098 %u2022 PICCO R/LX050.6-35R20 .236 .236 .016 1.3780 .008 1.968 .217 .098 %u2022 %u2022 Left-hand inserts on request(1) Cutting depth maximum PICCO R/LX050Reinforced Boring Inserts with Internal Coolant HolesDMINDCONMSaREWFCWLU3%u00b0 30%u00b0LFCDXDimensionsDesignation DCONMS DMIN CDX LU RE LF a WF CW IH IC908PICJ RBTD30R10-15 .157 .118 .020 .5512 .0039 1.181 .102 .024 .059 R %u2022 PICJ RBTD40R15-15 .157 .157 .032 .5512 .0059 1.181 .138 .059 .059 R %u2022 PICJ RBTD50R20-20 .197 .197 .039 .7480 .0079 1.378 .173 .075 .059 R %u2022 PICJ RBTD60R20-20 .236 .236 .071 .7480 .0079 1.378 .209 .091 .059 R %u2022 PICJ RBTD60R20-30 .236 .236 .071 1.1417 .0079 1.772 .209 .091 .059 R %u2022 PICJ RBTD70R20-20 .276 .276 .098 .7480 .0079 1.378 .248 .110 .059 R %u2022 PICJ RBTD70R20-30 .276 .276 .098 1.1417 .0079 1.772 .248 .110 .059 R %u2022%u2022 Specify right- or left-hand bars %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders onlyPICJ R/LBTInserts for Internal Back Turning
