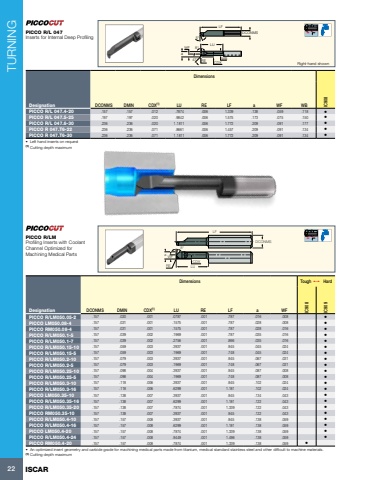

TURNING22 ISCAR5%u00b047%u00b0a8%u00b0WBLFRE CDXWFDCONMSLURight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF WB IC908PICCO R/L 047.4-20 .157 .157 .012 .7874 .006 1.339 .138 .059 .118 %u2022 PICCO R/L 047.5-25 .197 .197 .020 .9842 .006 1.575 .173 .075 .150 %u2022 PICCO R/L 047.6-30 .236 .236 .020 1.1811 .006 1.772 .209 .091 .177 %u2022 PICCO R 047.T6-22 .236 .236 .071 .8661 .006 1.457 .209 .091 .134 %u2022 PICCO R 047.T6-30 .236 .236 .071 1.1811 .006 1.772 .209 .091 .134 %u2022 %u2022 Left hand inserts on request(1) Cutting depth maximum PICCO R/L 047Inserts for Internal Deep ProfilingLFLUCDXWFREa8%u00b0DCONMSDimensions Tough 1 HardDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC908 IC909PICCO R/LM050.05-2 .157 .020 .001 .0787 .001 .787 .016 .008 %u2022 PICCO LM050.08-4 .157 .031 .001 .1575 .001 .787 .028 .008 %u2022 PICCO RM050.08-4 .157 .031 .001 .1575 .001 .787 .028 .016 %u2022 PICCO R/LM050.1-5 .157 .039 .002 .1969 .001 .787 .035 .016 %u2022 PICCO R/LM050.1-7 .157 .039 .002 .2756 .001 .866 .035 .016 %u2022 PICCO R/LM050.15-10 .157 .059 .003 .3937 .001 .945 .045 .024 %u2022 PICCO R/LM050.15-5 .157 .059 .003 .1969 .001 .748 .045 .024 %u2022 PICCO R/LM050.2-10 .157 .079 .003 .3937 .001 .945 .067 .031 %u2022 PICCO R/LM050.2-5 .157 .079 .003 .1969 .001 .748 .067 .031 %u2022 PICCO R/LM050.25-10 .157 .098 .004 .3937 .001 .945 .087 .008 %u2022 PICCO R/LM050.25-5 .157 .098 .004 .1969 .001 .748 .087 .008 %u2022 PICCO R/LM050.3-10 .157 .118 .006 .3937 .001 .945 .102 .024 %u2022 PICCO R/LM050.3-16 .157 .118 .006 .6299 .001 1.181 .102 .024 %u2022 PICCO LM050.35-10 .157 .138 .007 .3937 .001 .945 .134 .043 %u2022 PICCO R/LM050.35-16 .157 .138 .007 .6299 .001 1.181 .122 .043 %u2022 PICCO R/LM050.35-20 .157 .138 .007 .7874 .001 1.339 .122 .043 %u2022 PICCO RM050.35-10 .157 .138 .007 .3937 .001 .945 .122 .043 %u2022 PICCO R/LM050.4-10 .157 .157 .008 .3937 .001 .945 .138 .059 %u2022 PICCO R/LM050.4-16 .157 .157 .008 .6299 .001 1.181 .138 .059 %u2022 PICCO LM050.4-20 .157 .157 .008 .7874 .001 1.339 .138 .059 %u2022 PICCO R/LM050.4-24 .157 .157 .008 .9449 .001 1.496 .138 .059 %u2022 PICCO RM050.4-20 .157 .157 .008 .7874 .001 1.339 .138 .059 %u2022 %u2022 An optimized insert geometry and carbide grade for machining medical parts made from titanium, medical standard stainless steel and other difficult to machine materials.(1) Cutting depth maximum PICCO R/LMProfiling Inserts with Coolant Channel Optimized for Machining Medical Parts
