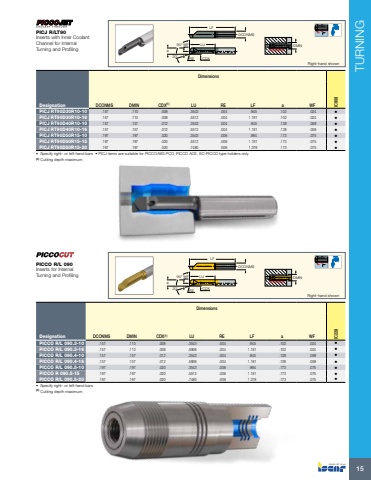

TURNING15DMINDCONMSLFWFCDX90%u00b0a20%u00b0 RELURight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC908PICJ RT90D30R10-10 .157 .110 .008 .3543 .004 .945 .102 .024 %u2022 PICJ RT90D30R10-16 .157 .110 .008 .5512 .004 1.181 .102 .024 %u2022 PICJ RT90D40R10-10 .157 .157 .012 .3543 .004 .945 .138 .059 %u2022 PICJ RT90D40R10-16 .157 .157 .012 .5512 .004 1.181 .138 .059 %u2022 PICJ RT90D50R15-10 .197 .197 .020 .3543 .006 .984 .173 .075 %u2022 PICJ RT90D50R15-15 .197 .197 .020 .5512 .006 1.181 .173 .075 %u2022 PICJ RT90D50R15-20 .197 .197 .020 .7480 .006 1.378 .173 .075 %u2022 %u2022 Specify right- or left-hand bars %u2022 PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only(1) Cutting depth maximum PICJ R/LT90Inserts with Inner Coolant Channel for Internal Turning and ProfilingDMINDCONMSLFWFCDX90%u00b0a20%u00b0 RELURight-hand shownDimensionsDesignation DCONMS DMIN CDX(1) LU RE LF a WF IC228PICCO R/L 090.3-10 .157 .110 .008 .3543 .004 .945 .102 .024 %u2022 PICCO R/L 090.3-16 .157 .110 .008 .5906 .004 1.181 .102 .024 %u2022 PICCO R/L 090.4-10 .157 .157 .012 .3543 .004 .945 .138 .059 %u2022 PICCO R/L 090.4-16 .157 .157 .012 .5906 .004 1.181 .138 .059 %u2022 PICCO R/L 090.5-10 .197 .197 .020 .3543 .006 .984 .173 .075 %u2022 PICCO R 090.5-15 .197 .197 .020 .5512 .006 1.181 .173 .075 %u2022 PICCO R/L 090.5-20 .197 .197 .020 .7480 .006 1.378 .173 .075 %u2022 %u2022 Specify right- or left-hand bars(1) Cutting depth maximum PICCO R/L 090Inserts for Internal Turning and Profiling
